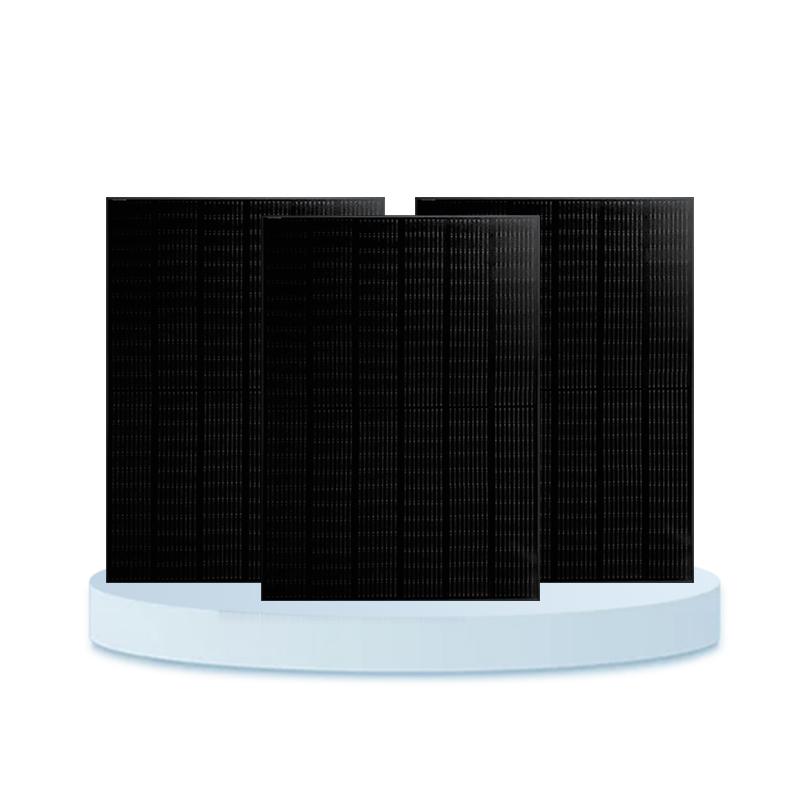

PV solar panels. 210mm Fully Black Monocrystalline N-type Topcon Solar Module 445w, 450w, 455w and 460w. Widely used for residential, in Europe.
Pagamento :
30% by T/T in advancePorto di spedizione :
Shanghai or NingboTempi di consegna :
10-15 working daysAdvantages:
1.Multi Busbar Solar Cell
Stronger current collection ability,Special circuit design with much lower hot spot temperature;
2. PID Resistant
Excellent PID resistance at 96 hours (85℃/85% test and also can
be improved to meet higher standards for the particularly harsh environment;
3.Anti-Crack
Excellent anti-microcracking performance with more balanced interior stress;
4. Module efficiency up to 23%
Half cell structure brings low resistance characteristic,higher
lifetime generating capacity, simultaneously lower annual power attenuation;
5.Low-Light Performance
Excellent power generation performance under Low-Light condition
due to multi busbar: better shading response benefit from half cell module;
6.Strength and Durability
Certified for 5400Pa snow and 2400Pa Wind loads test;
| Module Type | PNGNH72-BX-445 | PNGNH72-BX-450 | PNGNH72-BX-455 | PNGNH72-BX-460 | ||||
| Testing Condition | STC | STC | STC | STC | ||||
| Max. Power (Pmax/W) | 445 | 450 | 455 | 460 | ||||
| Voltage at Max. Power (Vmp/V) | 44.3 | 44.6 | 45.0 | 45.3 | ||||
| Current at Max. Power (Imp/A) | 10.05 | 10.09 | 10.11 | 10.15 | ||||
| Open Circuit Voltage(Voc/V) | 52.6 | 52.9 | 53.4 | 53.7 | ||||
| Short Circuit Current(Isc/A) | 10.71 | 10.74 | 10.77 | 10.84 | ||||
| Module Efficiency(%) | 22.3% | 22.5% | 22.8% | 23% | ||||
|
Power Tolerance (W)
|
0~+5 | |||||||
solar panel solar power energy
Standard Test Condition (STC)：Irradiance 1000W/m², Cell Temperature 25℃, AM1.5
Nominal Module Operating Temperature (NOCT)：Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s
Mechanical Specifications
| Cell Type | Mono 210R*70 |
| No. of Cells | 144 (6×24） |
| Dimension | 1762x1134x30mm |
| Weight | 20kg |
| Glass | 3.2mm, Low Iron Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68, 3 diodes |
| Output Cables | 4mm², Length 300mm or customized |
| Connector type | MC4 compatible |
| NOCT Temperature | 44℃±2℃ |
| Temperature Coefficient(Pmax) | -0.36%/C |
| Temperature Coefficient(Voc) | -0.29%/C |
| Temperature Coefficient(Isc) | 0.06%/C |
| Maximum System Voltage (IEC) | 1000/1500V DC |
| Snow/Wind | 5400Pa/2400Pa |
| Operating Temperature | -40℃~+85℃ |
| Maximum Series Fuse Rating | 25A |
| Per Pallet | 36 pcs |
| Per 20'GP | 216 pcs |
| Per 40' HQ Container | 936 pcs |
FAQ:
1.What's your payment conditions and terms?
