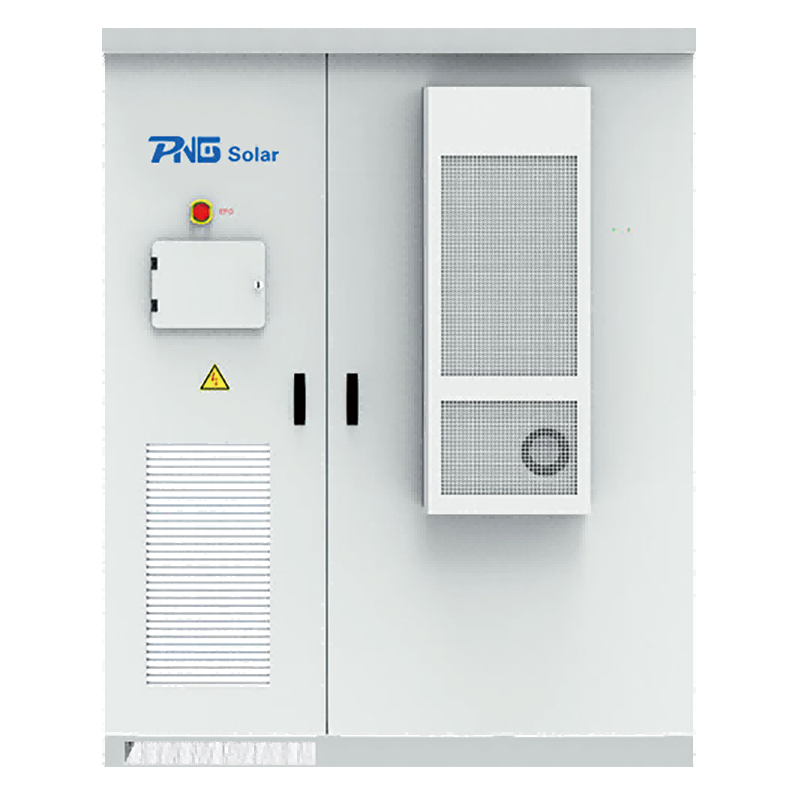

100KW/125KW inverter with 261KWH all-in-one cabinet is composed of inverter, LiFeP04 battery, BMS and EMS in a cabinet with high efficiency and safety.
It can be widely used for commercial and industrial use.
Pagamento :
30% by T/T in advancePorto di spedizione :
Shanghai or NingboTempi di consegna :
10-15 working days after paymentsAdvantages:
|
Model
|
PNG100KW-261kWh
|
PNG125KW-261kWh
|
|
Battery Data
|
|
|
|
Nominal Energy
|
261KWH
|
|
|
Nominal Voltage
|
832V
|
|
|
Operating Voltage Range
|
728-949V
|
|
|
Battery Chemistry
|
Lithium Iron Phosphate (LiFePO4)
|
|
|
Cycle Life
|
more than 8000cycles (@25℃， 0.5P/0.5P)
|
|
|
Cell Specification
|
3.2V 314Ah
|
|
|
Battery Pack Energy
|
52.24kwh
|
|
|
String configuration
|
1P260S
|
|
|
No. of strings
|
1
|
|
|
Rated Charging Power
|
0.5P
|
|
|
Rated Discharging Power
|
0.5P
|
|
|
Safety
|
||
|
Fire Extinguishing System
|
Aerosol fire extinguishing
|
|
|
Inverter Data
|
||
|
Rated Output Power
|
100KW
|
125KW
|
|
Please Refer To The PCS Section For More Details.
|
||
|
General
|
||
|
Dimension (W*D*H)
|
1300*1450*1890mm
|
|
|
Weight
|
Approximately 2600kg
|
|
|
IP Rating
|
IP54
|
|
|
Cooling method
|
Liquid cooling
|
|
|
Operating Temperature
|
-20~+50℃
|
|
|
Storage Temperature
|
-20~+45℃
|
|
|
Relative Humidity
|
15%~90%(Non-condensing)
|
|
|
Max. Operating Altitude
|
less than 3000m
|
|
|
Communication Interfaces
|
LAN/CAN/RS485
|
|
|
Compliance
|
IEC62619, IEC/EN61000, UN38.3, MSDS
|
|
FAQ:
1: Can the product be shipped to my area?
We export to most countries/regions (Centre/ South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.
2: How can I make payment?
100% T/T or maximum we can accept 30% T/T in advance and 70% T/T upon goods ready before shipment.
