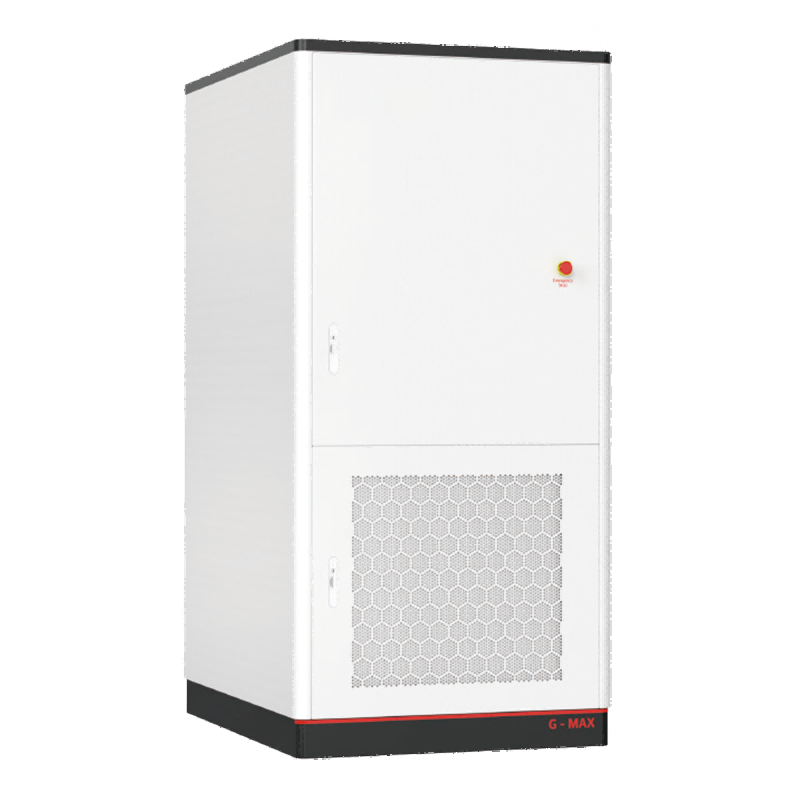

All-in-one cabinet 125KW 241KWH is mainly integrated with battery pack, BMS, PCS,STS,EMS with good quality and long design life of 10 years.
Pagamento :
30% by T/T in advancePorto di spedizione :
Shanghai or NingboTempi di consegna :
10-15 working days after paymentsAdvantages:
|
Model
|
PNG125KW-241kWh
|
|
Battery Data
|
|
|
Nominal Energy
|
241.15KWH
|
|
Nominal Voltage
|
768V
|
|
Battery Chemistry
|
Lithium Iron Phosphate (LiFePO4)
|
|
Cycle Life
|
more than 8000cycles (@25℃， 0.5P/0.5P)
|
|
Cell Specification
|
3.2V 314Ah
|
|
Battery Pack Energy
|
48.23kwh
|
|
String Configuration
|
1P240S
|
|
No. of Racks
|
1
|
|
Operation Voltage
|
672V~876V
|
|
Rated Charging Power
|
0.5P
|
|
Rated Discharging Power
|
0.5P
|
|
Safety
|
|
|
Fire Extinguishing System
|
Aerosol fire extinguishing
|
|
Inverter Data
|
|
|
Rated Output Power
|
125KW
|
|
Please Refer To The PCS Section For More Details.
|
|
|
General
|
|
|
Dimension (W*D*H)
|
1180*1360*2250mm
|
|
Weight
|
Approximately 2400kg
|
|
IP Rating
|
IP54
|
|
Cooling method
|
Smart air cooling
|
|
Operating Temperature
|
-20℃~+50℃
|
|
Storage Temperature
|
-20℃~+45℃
|
|
Relative Humidity
|
15%~90%(Non-condensing)
|
|
Max. Operating Altitude
|
less than 3000m
|
|
Communication Interfaces
|
LAN/CAN/RS485
|
|
Compliance
|
IEC62619, IEC/EN61000, UN38.3, MSDS
|
