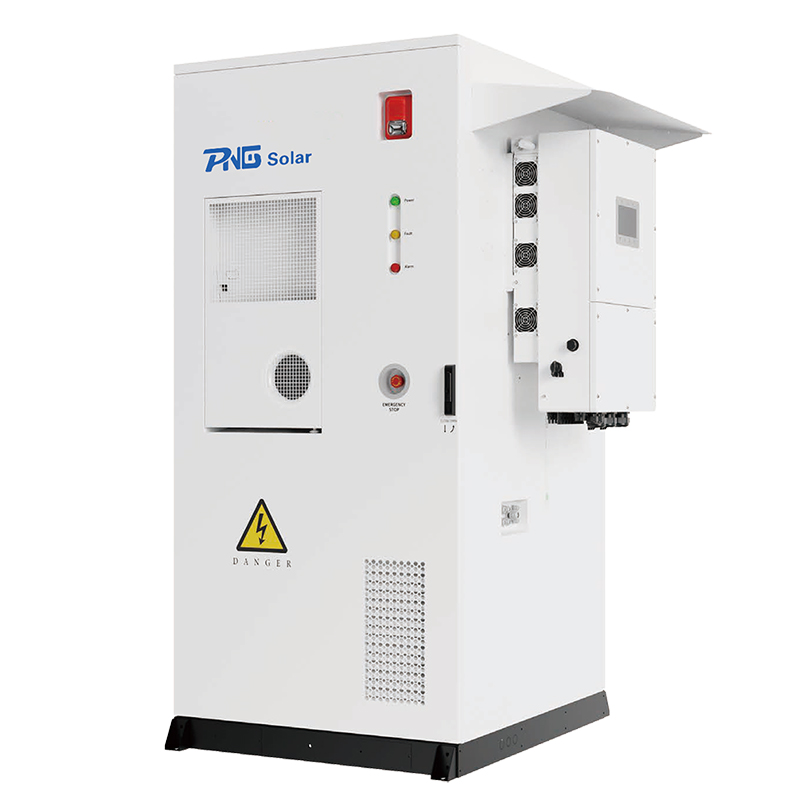

40KW inverter with 80KWH all-in-one cabinet is composed of inverter, LiFeP04 battery, BMS and EMS in a cabinet with high efficiency and safety.
It can be widely used for commercial and industrial use.
Pagamento :
30% by T/T in advancePorto di spedizione :
Shanghai or NingboTempi di consegna :
10-15 working days after paymentsAdvantages:
| Battery Specification | PNG40KW-80kWh |
|
Number of Battery Packs
|
8 |
|
Rated Voltage
|
409.6V
|
|
Voltage Range
|
358.4~467.2VV
|
|
Rated Energy
|
81.92kWh
|
|
Discharging Current
|
100A
|
|
Communication
|
RS485/CAN
|
|
Cycle Life
|
6000 times
|
|
PV Specification
|
|
|
Max.PV Input Power
|
52kW
|
|
Rated Input Voltage
|
600VDC
|
|
Max.Input Voltage
|
1000VDC
|
|
MPPT Voltage Range
|
150~850VDC
|
|
PV Input Current
|
36+36+36+36(A)
|
|
AC Side Specification
|
|
|
AC Rated Input/Output Power
|
40kVA |
|
AC Max. Input/Output Power
|
44kVA |
|
AC Rated Input/Output Current
|
60.7 / 58A |
|
AC Max. Input/Output Power
|
66.7 / 63.8A |
|
Voltage
|
3L/N/PE; 230/400V
|
|
Frequency
|
50/60Hz |
|
THDi
|
≤3% |
|
Power Factor
|
0.8 leading to 0.8 lagging |
|
System Specification
|
|
|
Dimension（W*H*D）
|
840*1045*1870mm
|
|
Weight
|
1050kg
|
|
Communication
|
CAN/RS485/WiFi/ETH
|
|
Warranty
|
10 years
|
|
Protection Level
|
IP55
|
|
Cooling
|
Air-cooling
|
|
Environment temperature
|
-30℃~50℃
|
|
Humidity
|
10%~95%RH
|
|
Altitude
|
<2000m
|
|
Certifications
|
UN38.3/CE/IEC62619/CEI 0-21/VDE-AR-N 4105/IEC 62109
|
FAQ:
1: Can the product be shipped to my area?
We export to most countries/regions (Centre/ South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.
2: How can I make payment?
100% T/T or maximum we can accept 30% T/T in advance and 70% T/T upon goods ready before shipment.
